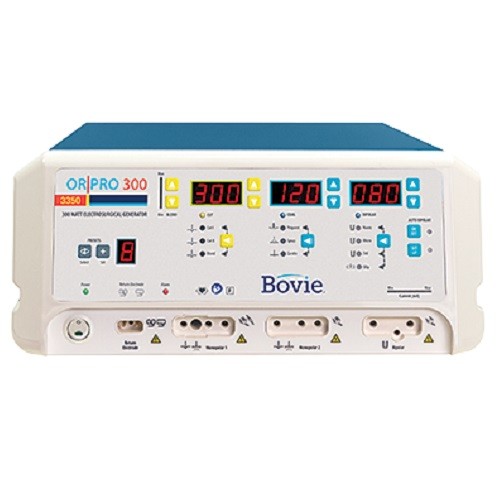

Bovie OR PRO 300 W Electrosurgery Generator A3350
Bovie introduces the OR PRO 300 Electrosurgical Generator. The system was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences.
Package Includes:
- Bovie OR PRO 300 Electrosurgical Generator
- 110 VAC Hospital-Grade Power Cord (15ft.)
- 220 VAC Hospital-Grade Power Cord (15ft.)
- User’s Guide in CD Format (MC-55-230-001)
Technical Specifications:
- Audible/Visible Output Meter: Yes
- Contact Monitoring Systems: BovieNEM™
- Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Pre-set Feature: Yes
- Current Meter: Yes
- Monopolar HP Ports: 2
- Dual Activation Tone Alert: Yes
- Connector Ports/Power Switch: White
- Weight: <9.07 kg (<20 lbs)
- Dimensions: W – 37.5 cm (14.75 in) H – 16.5 cm (6.5 in) D – 46 cm (18.1 in)
- Warranty: 4 years, Additional Warranty Available
MONOPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ) Cut I 300 1000V 1.7 ± 20% 490 kHz ± 4.9 kHz Cut II 300 750V 1.7 ± 20% 490 kHz ± 4.9 kHz Blend (1) 200 1320V 1.8 ± 20% 490 kHz ± 4.9 kHz Blend (2) 200 1475V 2.0 ± 20% 490 kHz ± 4.9 kHz Blend (3) 200 1650V 2.2 ± 20% 490 kHz ± 4.9 kHz Blend (4) 200 1870V 2.4 ± 20% 490 kHz ± 4.9 kHz Pinpoint Coagulation 120 1800V 3.1 ± 20% 490 kHz ± 4.9 kHz Spray Coagulation 120 4000V 6.0 ± 20% 350 to 450 kHz Gentle Coagulation 120 450V 1.6 ± 20% 490 kHz ± 4.9 kHz BIPOLAR WATTS VPEAK MAX VOLTAGE CREST FACTOR (TYPICAL) FREQUENCY (KHZ) Macro Bipolar 150 600V 1.5 ± 20% 490 kHz ± 4.9 kHz Micro Bipolar 80 450V 1.5 ± 20% 490 kHz ± 4.9 kHz Standard Bipolar 50 300V 1.5 ± 20% 490 kHz ± 4.9 kHz Bovie Bipolar 225 250V 1.5 ± 20% 490 kHz ± 4.9 kHz Auto Bipolar 80 490 kHz ± 4.9 kHz - Reviews
-
